This page preserves some of the hardware implementations and educational applications developed around the 8051 material presented in Mikroişlemciler ve 8051 Ailesi: Donanım, Programlama ve Uygulamalar. It is retained as a historical record of how the development-board design and related examples were used in technical education.
8032-Based Development Board
An implementation based on the development-board concept described in Chapter 9.
Abdullah Neyse, then Head of the Computer Department at Zeytinburnu Endüstri Meslek Lisesi, visited me several times at TÜBİTAK-UEKAE in Gebze and also contacted me on many occasions to discuss the 8051 development board presented in the book. We also had several valuable conversations concerning broader educational issues.
He designed the PCB shown below, built and tested the board, reproduced several copies, and used them with students at his school. The board was also used to teach the fundamental concepts behind microcontroller-based system development.
Abdullah Neyse's Remarks
“Kitabınız için tebrik ederim. Milli eğitime kitabınızla büyük hizmetiniz oldu. Kitapta tanıtılan 8051 program geliştirme kartını yaptık ve çalıştırdık. Bu kartlardan çoğaltarak okulumuzdaki eğitimde kullanıyoruz. Ayrıca, kitapta verdiğiniz diğer 8051 uygulamalarını da çalıştırıyoruz. Geliştirme kartınız, monitör programı ve bu programlar eğitim için çok faydalı oldu. Kitabınızı, öğrencilerime ve öğretmen arkadaşlara tavsiye ediyorum. Ayrıca, kitabınızı ders kitabı olarak kullanıyorum...”
— Abdullah Neyse, Zeytinburnu Endüstri Meslek Lisesi
PCB Design
The PCB was designed as a two-sided board with an intentionally straightforward layout so that students could reproduce it more easily in an educational environment. The images below preserve the component placement and the two PCB sides used in that implementation.
Component Placement Plan

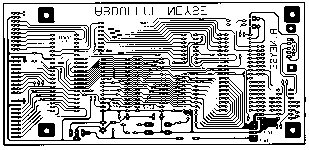

PCB — Front Side

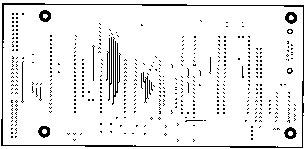

PCB — Back Side

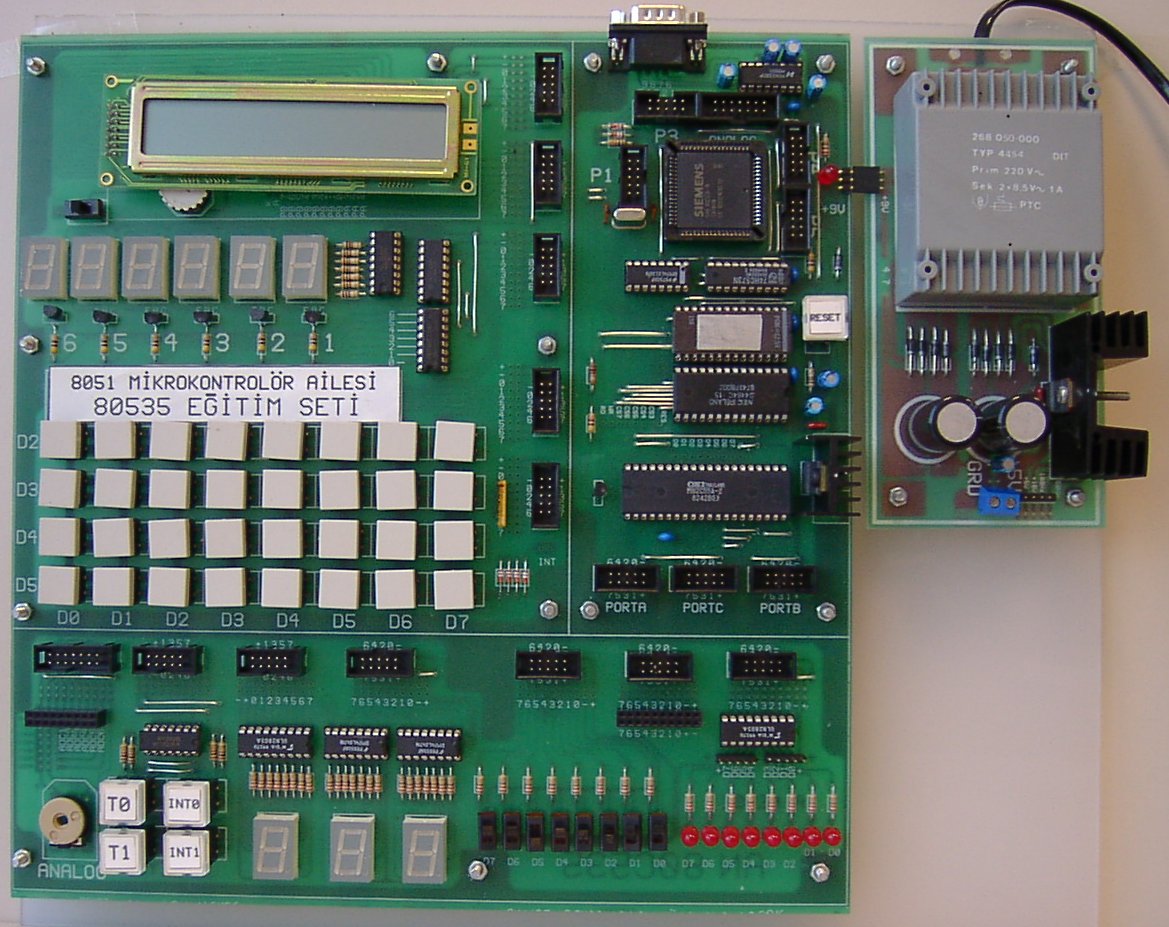

Siemens 80C535-Based Teaching Set
A teaching set based on the Siemens 80C535 microcontroller, also described in Chapter 9.

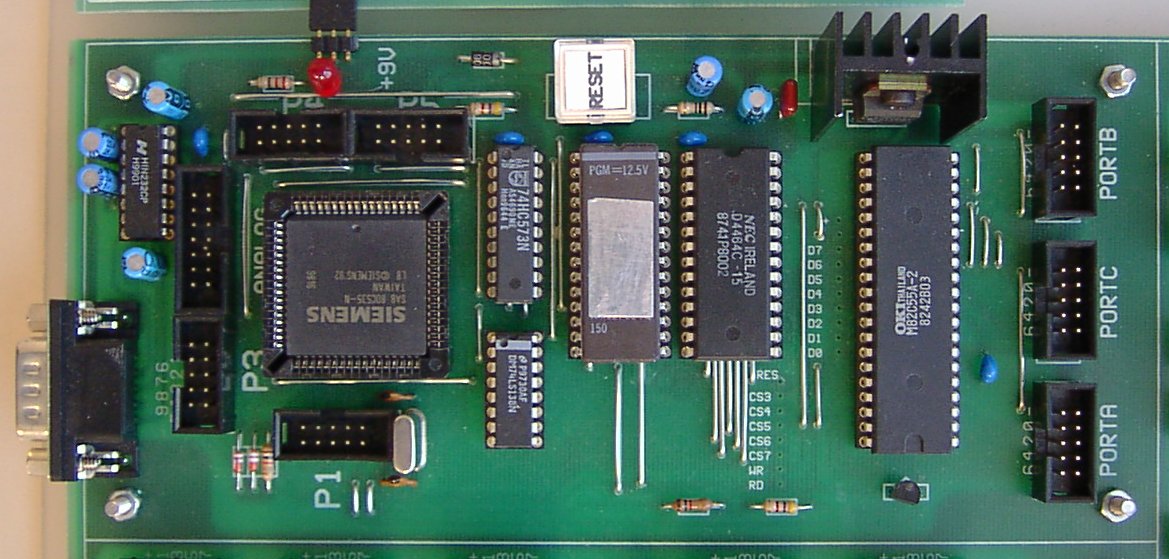

Main Microcontroller Section
The image below shows the main section of the teaching set containing the microcontroller and its supporting circuitry.
Historical Note
These photographs and PCB images are preserved here as part of the educational history of the book and its practical use in microcontroller teaching. They show how the hardware examples presented in the book were reproduced and adapted for hands-on technical education.
